Processor Support:
- Socket: LGA 1150
- Compatible Processors: Intel 4th and 5th Generation Core i7/i5/i3, Pentium, and Celeron processors
Memory:
- Memory Slots: 2 x DDR3
- Memory Type: DDR3 1600/1333 MHz
- Max Memory Capacity: Up to 16GB
Storage:
- SATA Ports: 2 x SATA III (6Gb/s), 2 x SATA II (3Gb/s)
- Expansion Slots:
- 1 x PCIe 2.0 x16
- 2 x PCIe 2.0 x1
- 1 x PCI
Graphics:
- Integrated Graphics: Yes (Intel HD Graphics)
Audio:
- Audio Codec: Integrated 6-Channel HD Audio (Realtek ALC662)
Network:
- LAN: 10/100/1000 Mbps Ethernet (Realtek RTL8111E)

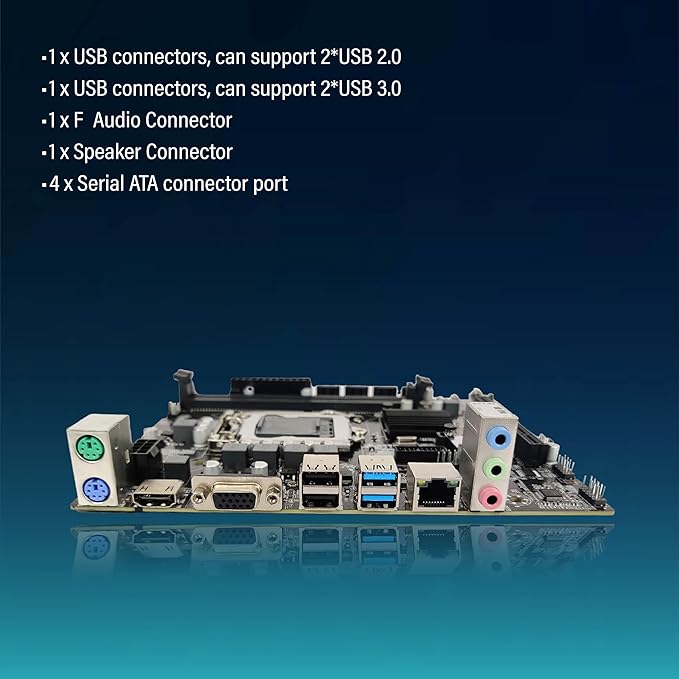

Rear Panel I/O Ports:
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub (VGA) port
- 1 x HDMI port
- 2 x USB 3.0 ports
- 2 x USB 2.0 ports
- 1 x LAN (RJ-45) port
- 3 x Audio Jacks
Internal I/O Ports:
- 2 x USB 2.0 headers (supports 4 USB 2.0 ports)
- 1 x CPU Fan Header
- 1 x System Fan Header
- 1 x Front Panel Audio Header
- 1 x Front Panel Header
Power:
- Power Connector: 24-pin ATX main power connector, 4-pin ATX 12V power connector
Physical Specifications:
- Dimensions: 226 mm x 175 mm
- Weight: 400 grams

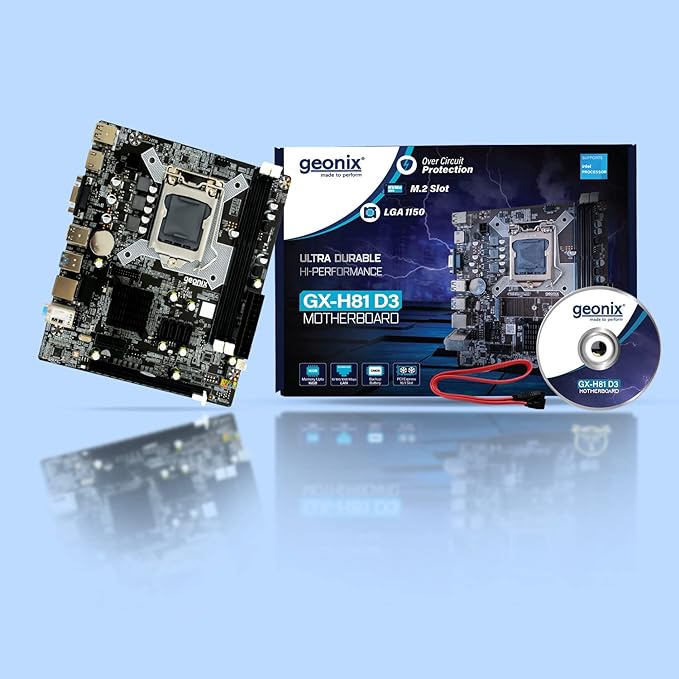

Package Contents:

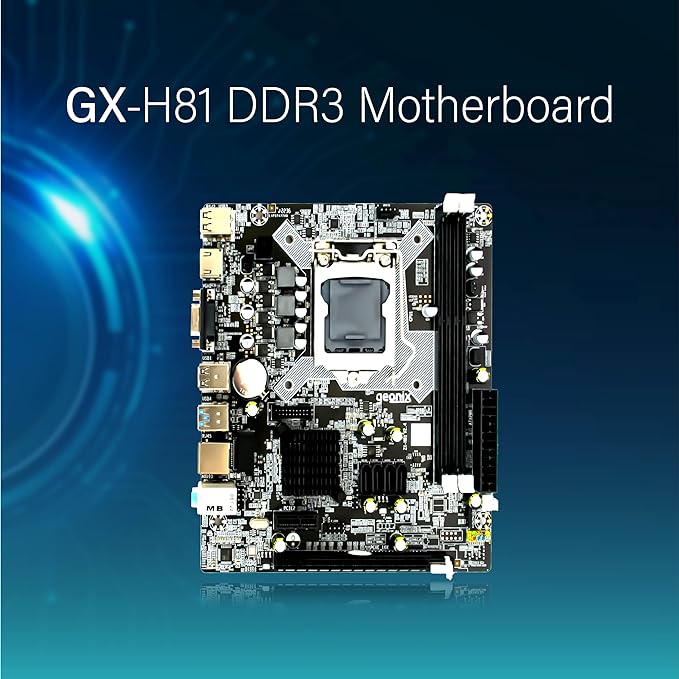

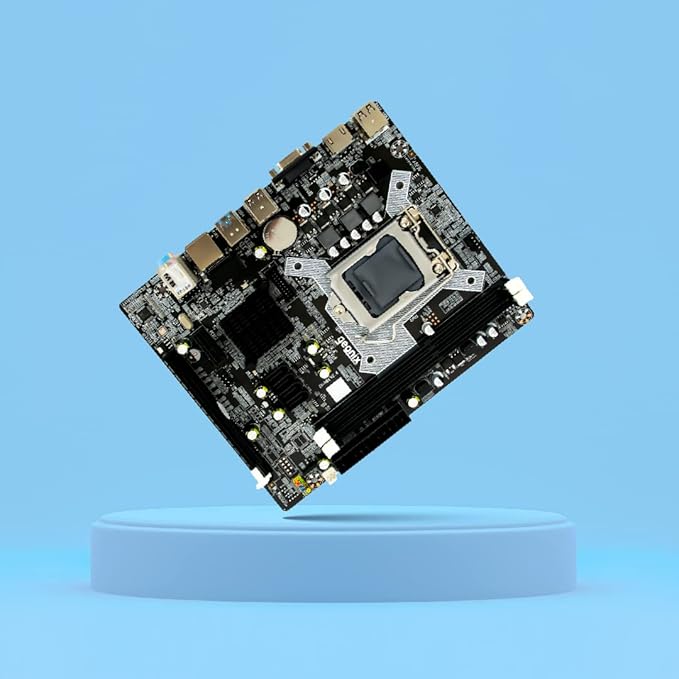

- 1 x Geonix H81 Motherboard
- 1 x User Manual
- 1 x Driver CD
- 2 x SATA Cables
- 1 x I/O Shield
Warranty:Â 3 Years Warranty from Brand
